| Video |
|---|
| VGA |
|
| Gain | Unity |
| Resolution range | Up to 1920x1200* or 1080p (HDTV)
* reduced blanking |
| HDMI |
|
| Maximum data rate | 10.2 Gbps (3.4 Gbps per color) |
| Maximum pixel clock | 300 MHz (600 MHz for 4K rates with 4:2:0 chroma subsampling) |
| Resolution range | Up to 2560x1600 @ 60 Hz*, or
4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz,
4K/UHD @ 60 Hz with 4:2:0 chroma subsampling
* reduced blanking |
| Formats | RGB and YCbCr digital video |
| Standards | DisplayPort 1.1, DVI 1.0, HDMI 1.4, HDCP 1.4 and 2.2 |
| DisplayPort |
|
| Maximum data rate | 10.8 Gbps (2.7 Gbps per lane) |
| Maximum pixel clock | 300 MHz |
| Resolution range | Up to 2560x1600 @ 60 Hz*, or
4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz,
* reduced blanking |
| Formats | RGB and YCbCr digital video |
| Standards | DisplayPort 1.1, HDCP 1.3 |
| NOTE Only Single Stream Transport (SST) is supported. |
|
| Video input |
|---|
| Number/signal type | 1 analog RGBHV
1 single link HDMI (or DVI-D or DisplayPort)
1 DisplayPort |
| Connectors | 1 female 15-pin HD
1 female HDMI type A
1 female DisplayPort |
| Nominal level | 0.7 Vp-p for RGB |
| Minimum/maximum levels | 0.3 V to 1.45 Vp-p |
| Impedance | 75 ohms |
| Horizontal frequency | 30 kHz to 100 kHz |
| Vertical frequency | 24 Hz to 120 Hz |
|
| Video output — switched, local |
|---|
| Number/signal type | 1 single link HDMI (or DVI-D) |
| Connectors | 1 female HDMI type A |
|
| Shielded twisted pair interconnection |
|---|
| Connectors | 1 female RJ-45 per unit |
| Termination standards | TIA/EIA T568B |
| Signal transmission distance | 330' (100 m) using shielded twisted pair or XTP DTP 24 cable |
| Cable requirements | Solid conductor, 24 AWG or better |
| Cable recommendations | 400 MHz bandwidth, STP (shielded twisted pair) |
| NOTE Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance. |
|
| Audio |
|---|
| Gain |
|
| Range | Adjustable, -18 dB to +24 dB |
| Default | Unbalanced output: 0 dB; balanced output +6 dB |
| Frequency response | 20 Hz to 20 kHz, ±0.05 dB |
| THD + Noise | 0.1% @ 1 kHz at nominal level |
| S/N | >90 dB, at maximum output, balanced (unweighted) |
| Crosstalk | ≤-80 dB @ 1 kHz, fully loaded |
| Stereo channel separation | >80 dB @ 1 kHz |
| Sampling rates | 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz |
| Bit depths | 16, 20, 24 bit |
|
| Audio input |
|---|
| Number/signal type | 1 analog stereo, unbalanced or
1 digital audio, de-embedded from HDMI
1 digital audio, de-embedded from DisplayPort |
| Connectors | 1 female 3.5 mm mini stereo jack
1 female HDMI type A (shared with video input)
1 female DisplayPort (shared with video input) |
| Source formats | LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos?, Dolby TrueHD, Dolby Digital Plus?, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio?, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel, analog stereo |
| Impedance | >10k ohms, unbalanced, DC coupled |
| Nominal level | -10 dBV (316 mVrms) unbalanced |
| Maximum level | +7 dBv unbalanced |
| NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
| Audio output |
|---|
| Number/signal type | 1 digital audio, embedded with HDMI output |
| Connectors | 1 female HDMI type A (shared with video output) |
| Source formats | LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos?, Dolby TrueHD, Dolby Digital Plus?, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio?, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel |
| NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
| Communications — switcher |
|---|
| Serial control port | 1 bidirectional RS-232: 1 rear panel 3.5 mm captive screw connector, 3 pole |
| Baud rate and protocol | 9600 (default) to 115200 baud, 8 data bits, 1 stop bit, no parity |
| Serial control pin configuration | 1 = Tx, 2 = Rx, 3 = Gnd |
| Contact closure | (1) 3.5 mm captive screw connector, 4 pole |
| Contact closure pin configuration | 1 = input 1, 2 = input 2, 3 = input 3, 4 = GND |
| Tally output | 3 tally outputs on (1) 3.5 mm captive screw connector, 4 pole |
| Tally pin configuration | 1 = Input 1 tally ground, 2 = Input 2 tally ground, 3 = Input 3 tally ground, 4 = +5 V |
| USB control port | 1 front panel female mini USB B |
| USB standards | USB 2.0, low speed |
| Program control | Extron control/configuration program for Windows?
Extron Simple Instruction Set (SIS?) |
|
| Communications — external device (pass-through, unidirectional or bidirectional) |
|---|
| Serial control pass-through port | RS-232 (±5 V) via (1) 3.5 mm, 5 pole captive screw connector (uses 3 poles)
(connector is shared with the IR control port) |
| Baud rates | Up to 115200 baud |
| Protocol | Data bits = 5 - 8
Stop bits = 1 or 2
Parity = odd, even, none
Flow control = XON, XOFF, none |
| Serial control pin configuration | 1 = Tx, 2 = Rx, 3 = Gnd |
| IR control port | (1) 3.5 mm, captive screw connector, 5 pole (uses 3 poles)
(connector is shared with the RS-232 control port)
TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 56 kHz |
| IR control pin configuration | 3 = GND, 4 = IR Tx, 5 = IR Rx |
| Ethernet pass-through port | 1 female RJ-45 connector |
| Ethernet data rate | 10/100Base-T, half/full duplex with autodetect |
|
| General |
|---|
| Power supply | External
Input: 100 to 240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 watts |
| Power consumption |
|
| Device | 16.5 watts, 12 VDC |
| Device and power supply | 18.2 watts, 12 VDC |

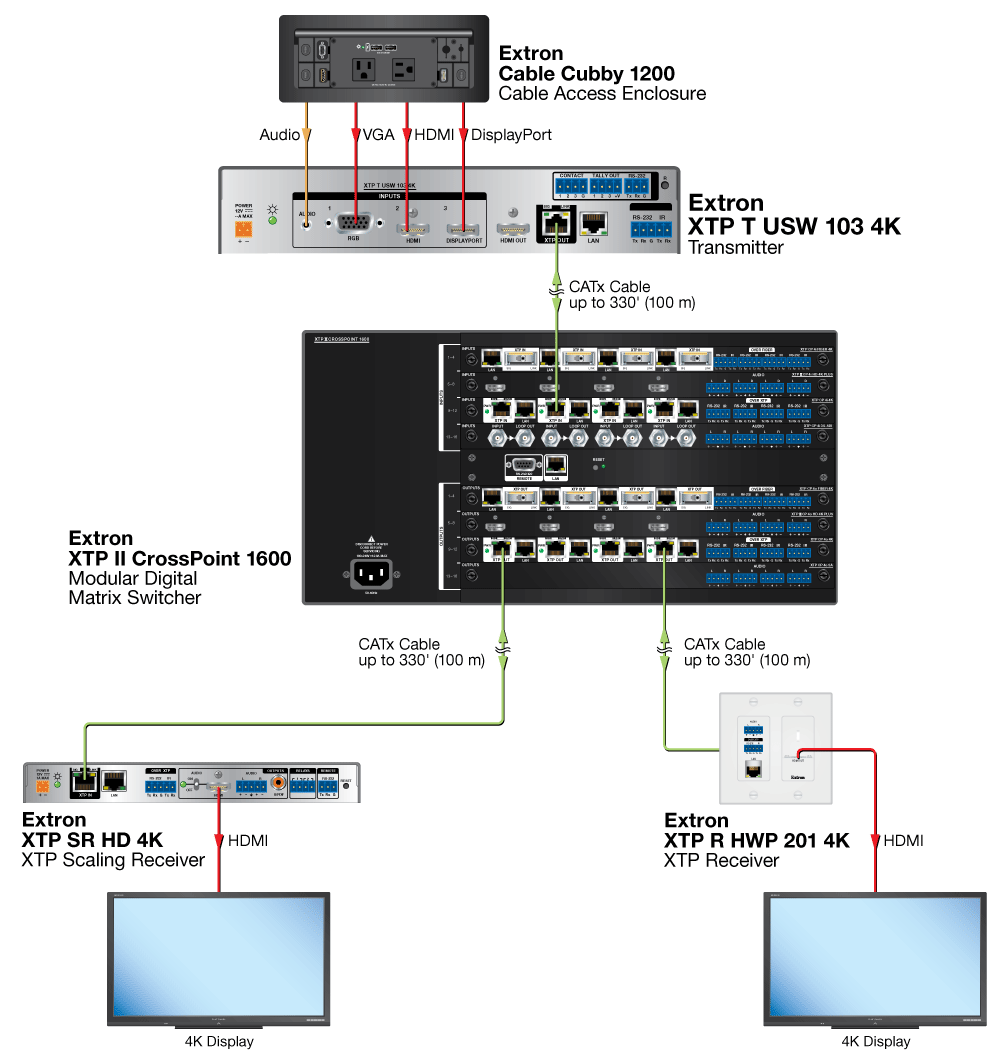

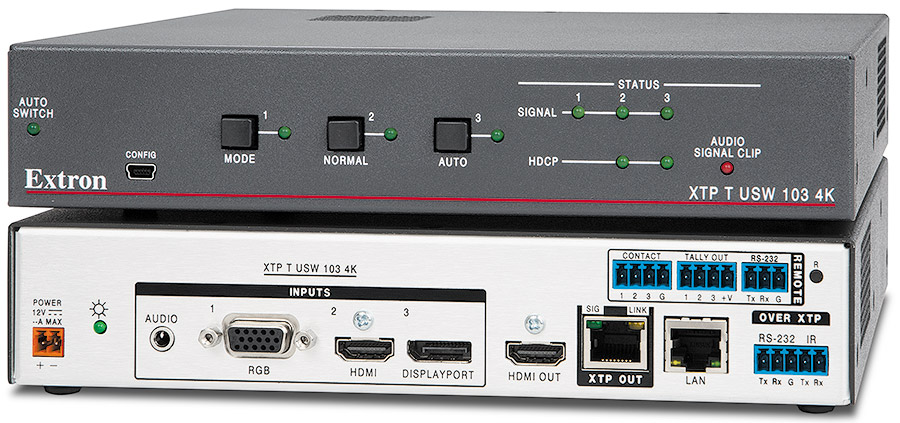

| NOTE The XTP T USW 103 4K requires a locally connected power supply. |
| Temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, vents on sides and top |
| Thermal dissipation |
|
| Device | 55.3 BTU/hr |
| Device and power supply | 61.1 BTU/hr |
| Mounting |
| Rack mount | Yes, with optional 1U high rack shelf |
| Furniture mount | Yes, with optional under-desk mounting kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.66" H x 8.68" W x 8.5" D (half rack wide)
(4.2 cm H x 22.1 cm W x 21.5 cm D)
(Depth excludes connectors.) |
| Product weight | 2.7 lbs (1.2 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance |
|
| Safety | CE, c-UL, UL |
| EMI/EMC | CE, C-tick, FCC Class A, ICES, VCCI |
| Environmental | Complies with the appropriate requirements of RoHS, WEEE. |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE All nominal levels are at ±10%. |
| NOTE Specifications are subject to change without notice. |
